ME442
Mitsubishi
Lancer
Evolution 4-8

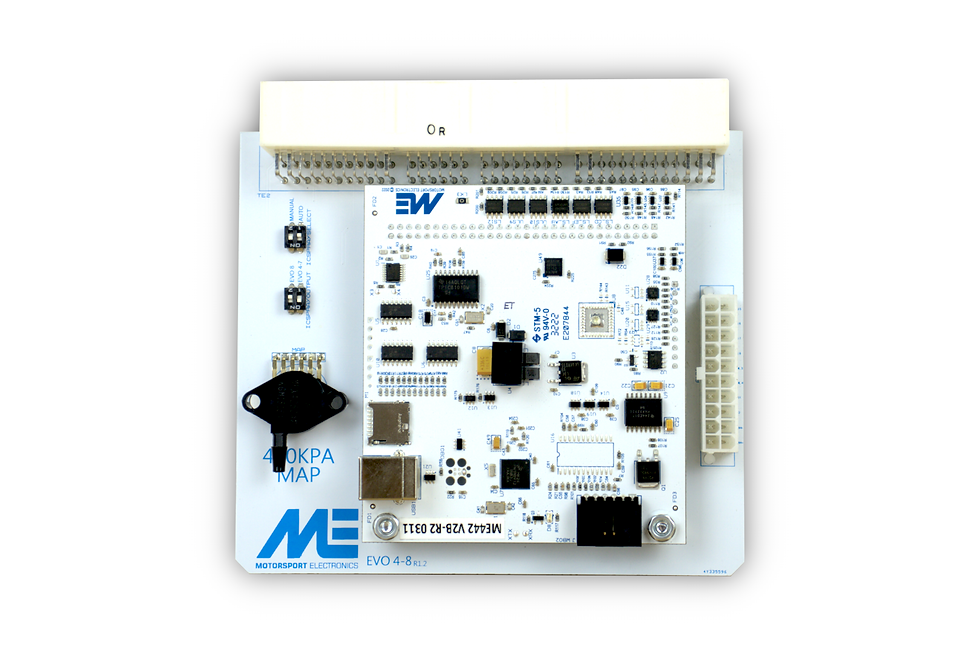

The ME442 Mitsubishi Plug-In is the latest plug-in Engine Management System for the Mitsubishi Evo 1-8. This package includes the Wideband Sensor and Cable.
Please note this system is directly Plug-n-Play for the Evo 5, and comes complete with the plastic insert to re-use the stock plastic ECU case. Other models, such as Evo (1-8) etc are also fully supported with minor pin-swaps and jumper settings as detailed in the Hardware Install Guide. If in doubt, please consult us or your tuner as to suitability.
This convenient plug-in ECU is designed to replace the original circuit board within the casing of the vehicle's factory ECU. The ECU retains the original connector, allowing for a straightforward installation process. The OEM ECU casing provides protection and ensures a clean, factory-like appearance. By fitting inside the original casing and utilising the original connector, the ECU offers a discreet and efficient way to upgrade the engine's control system.
With this type of plug-in ECU, you can enjoy the benefits of enhanced engine performance and customisation without needing to modify the wiring harness or perform extensive rewiring while maintaining full OEM functionality!
The only extra thing you need to do besides plugging it in is run a MAP vacuum hose (supplied) from the ECU to the intake manifold.
Along with the standard ME221 feature set, the ME442 version adds the following features:
On-board Bosch Wideband Lambda O2 Controller
On-board Real-Time-Clock and SD Card Data Logging
Drive-by-Wire Support (some models, please enquire if needed)
K-Type EGT Input
Accelerometer and Gyroscope
CAN Bus for external dashboards and expandability
The core has as standard:
Uses the ME221 ECU Core (NXP Automotive Processing Power)
Supports factory sensors.
Truly Plug-In : Supports both switched TPS and linear TPS conversions.
16×16 Fuel and Ignition Tables (with dual table switching)
VE based fuelling algorithm.
Run any type of high impedance injectors.
DSP Knock Control
In-built 60psi MAP sensor
Closed Loop Boost, Lambda and Idle Control
Launch Control
Fully Sequential on 1.8 version
In the field regular firmware updates and improvements
Uses the powerful MEITE tuning studio.
An open approach to firmware/software features.
Supplied with rolling road certified and developed base-maps for either turbo or NA setups.
